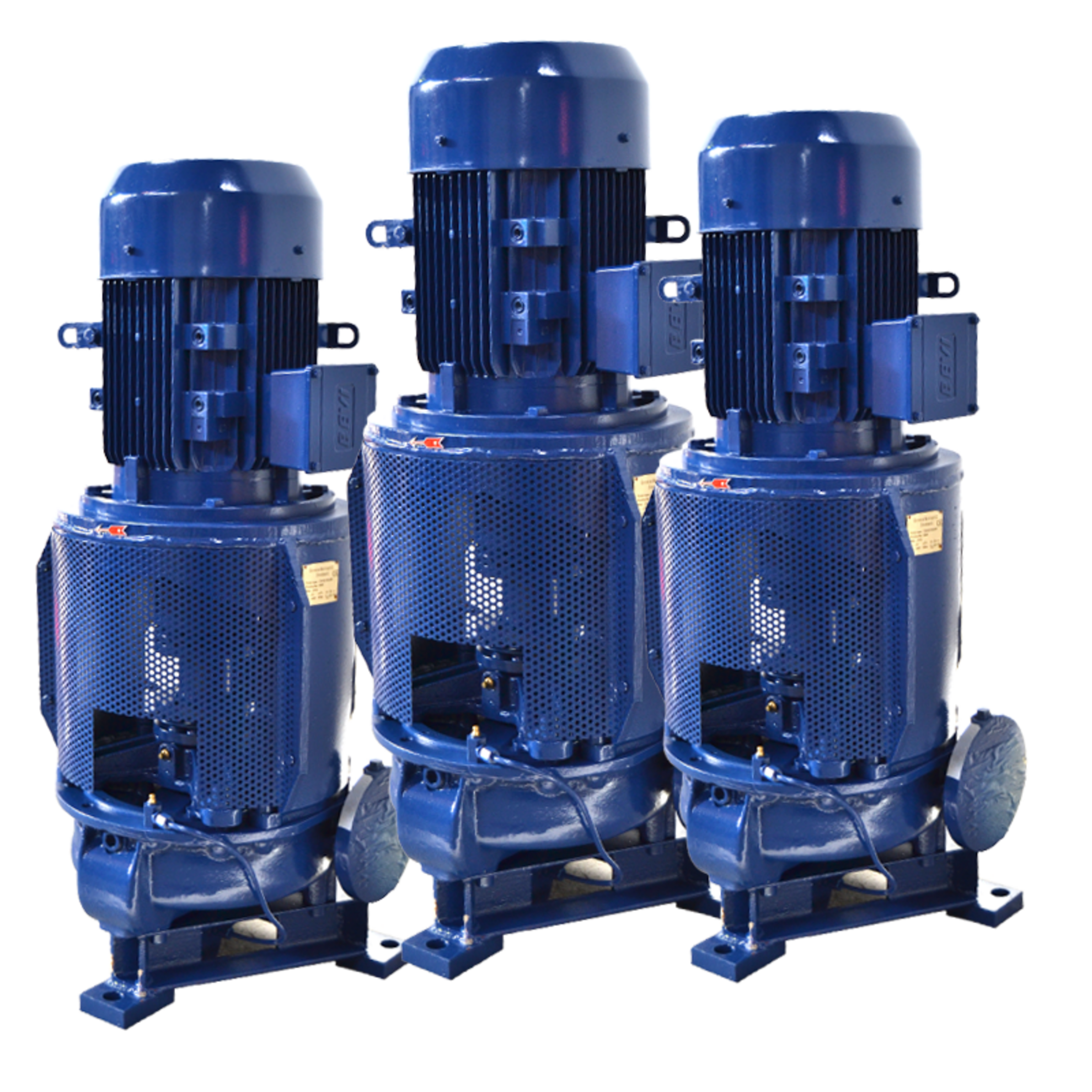

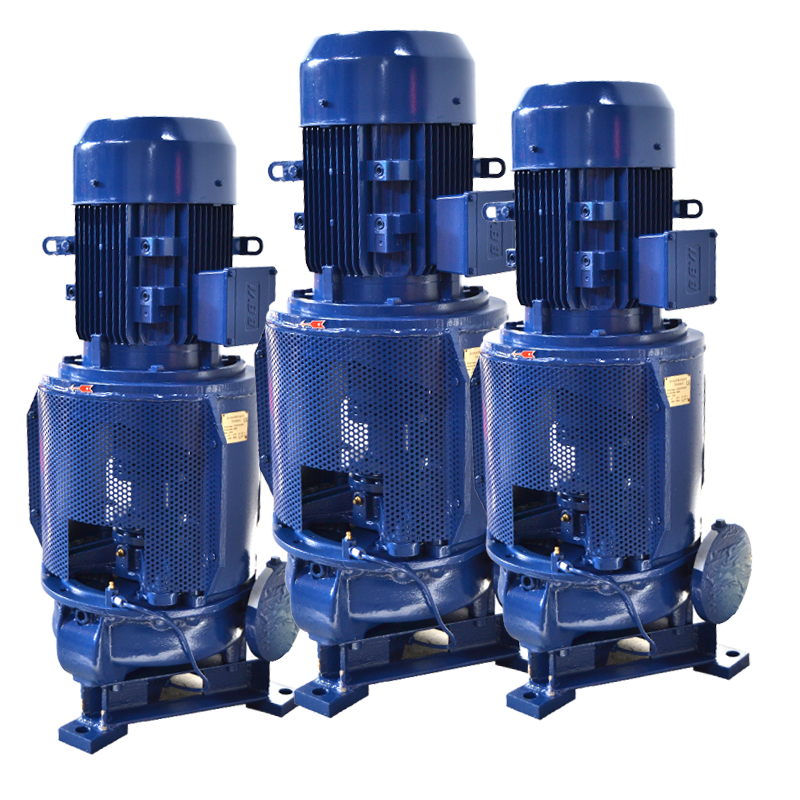

CG replacement pump
Nordan Marine's CG replacement pump is designed for a long and reliable service life and constructed as single stage vertical centrifugal pump. The logical assembly and minimum assembly parts make both inspection and maintenance easy to carry out because the pump are radically split and the complete rotating element can be dismantled independently of electric motor and piping connections.
Area of application: Transfer Bilge, Ballast, Cooling water, Fire and General Service.
Performance Data:
| Duty: | Sea Water and Fresh Water |
| Capacity: | From 10 to 1500 m3/h |
| Pump total head: | From 10 to 140 mlc |
Pump Material:
| Sealing: | Mechanical Seal |
| Bearling: | Ball Bearing |
| Coupling: | Coupling with spring discs and spacer |
| Pump Casing: | Bronze, NI-AL bronze and case iron |
| Impeller: | Bronze, NI-AL bronze and Stainless steel |
| Shaft: | Stainless steel |
“ Nordan Marine complete CG replacement pump can be supplied in accordance with the requirements from all leading marine classification societies such as BV, DNV, LRS, GL, RMRS, CRS and ABS ”
CG bare shaft pump
Nordan Marine supplies CG replacement pump with electric motor and CG bare shaft pump, which is a complete CG pump without electric motor, pump foot, motor pedestal and transmission, to all Thune Eureka centrifugal pumps type CG: CGA 50/65, CGB 80/100, CGC 125/150, CGD 200/250 and CGE 300/350. Both models of CG pumps can be delivered within short time.
