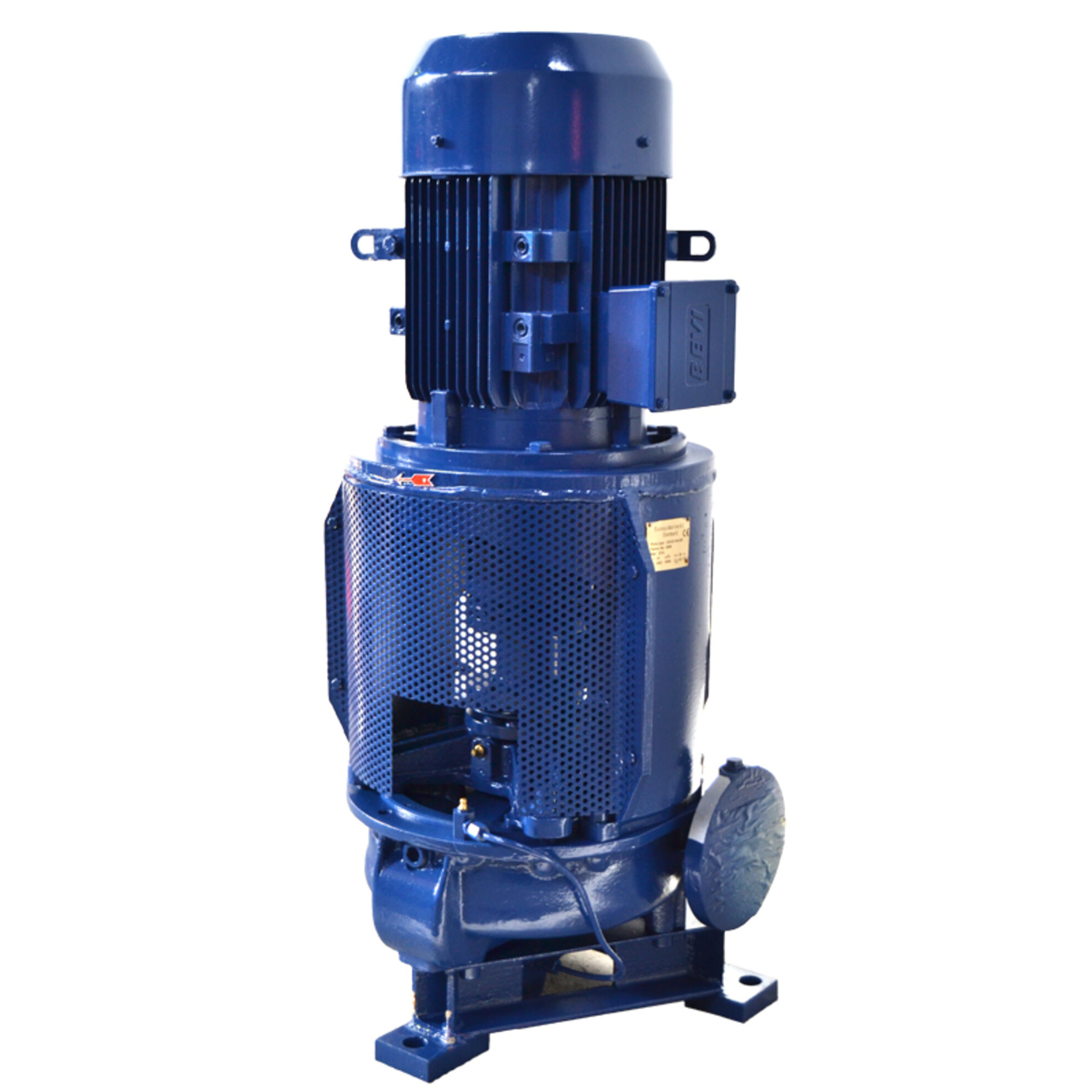

CG Centrifugal Pump
Nordan Marine’s CG replacement pump is designed for a long and reliable service life. It is constructed as a single-stage, vertical centrifugal pump. Its logical design and minimal number of components make inspection and maintenance straightforward. The pump is radially split, allowing the complete rotating element to be dismantled independently of the electric motor and piping connections.
We supply complete new pumps for all CG pump series: CGA 50/65, CGB 80/100, CGC 125/150, CGD 200/250, and CGE 300/350. These pumps serve as suitable alternatives to Hamworthy, Kværner Eureka, and Thune Eureka pump systems.
Area of application: Transfer Bilge, Ballast, Cooling water, Fire and General Service.

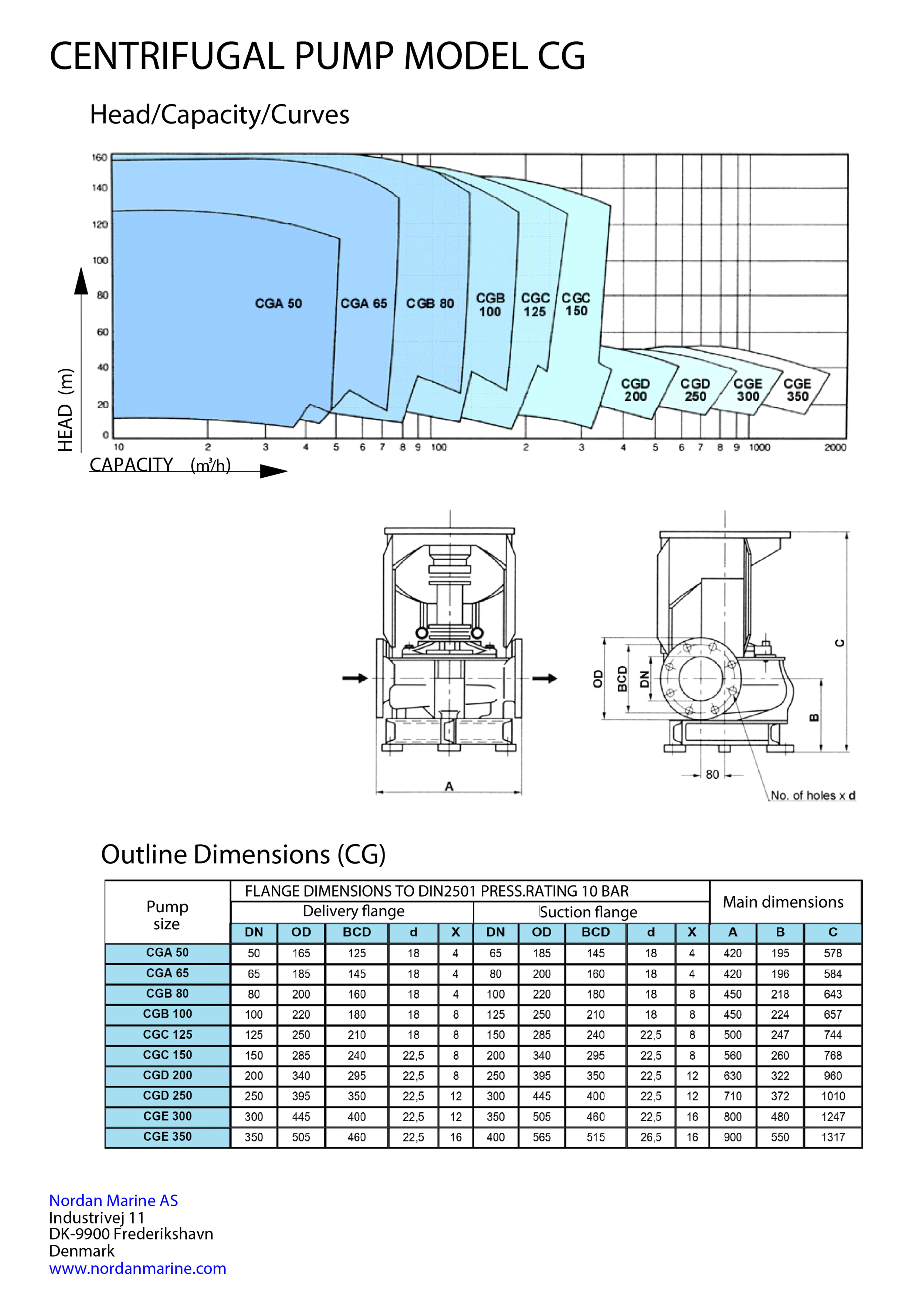

Performance Data:
| Duty: | Sea Water and Fresh Water |
| Capacity: | From 10 to 1500 m3/h |
| Pump total head: | From 10 to 140 mlc |
Pump Material:
| Sealing: | Mechanical Seal |
| Bearling: | Ball Bearing |
| Coupling: | Coupling with spring discs and spacer |
| Pump Casing: | Bronze, NI-AL bronze and case iron |
| Impeller: | Bronze, NI-AL bronze and Stainless steel |
| Shaft: | Stainless steel |
“ Nordan Marine complete CG replacement pump can be supplied in accordance with the requirements from all leading marine classification societies such as BV, DNV, LRS, GL, RMRS, CRS and ABS ”
Nordan Marine Auxiliary Equipment

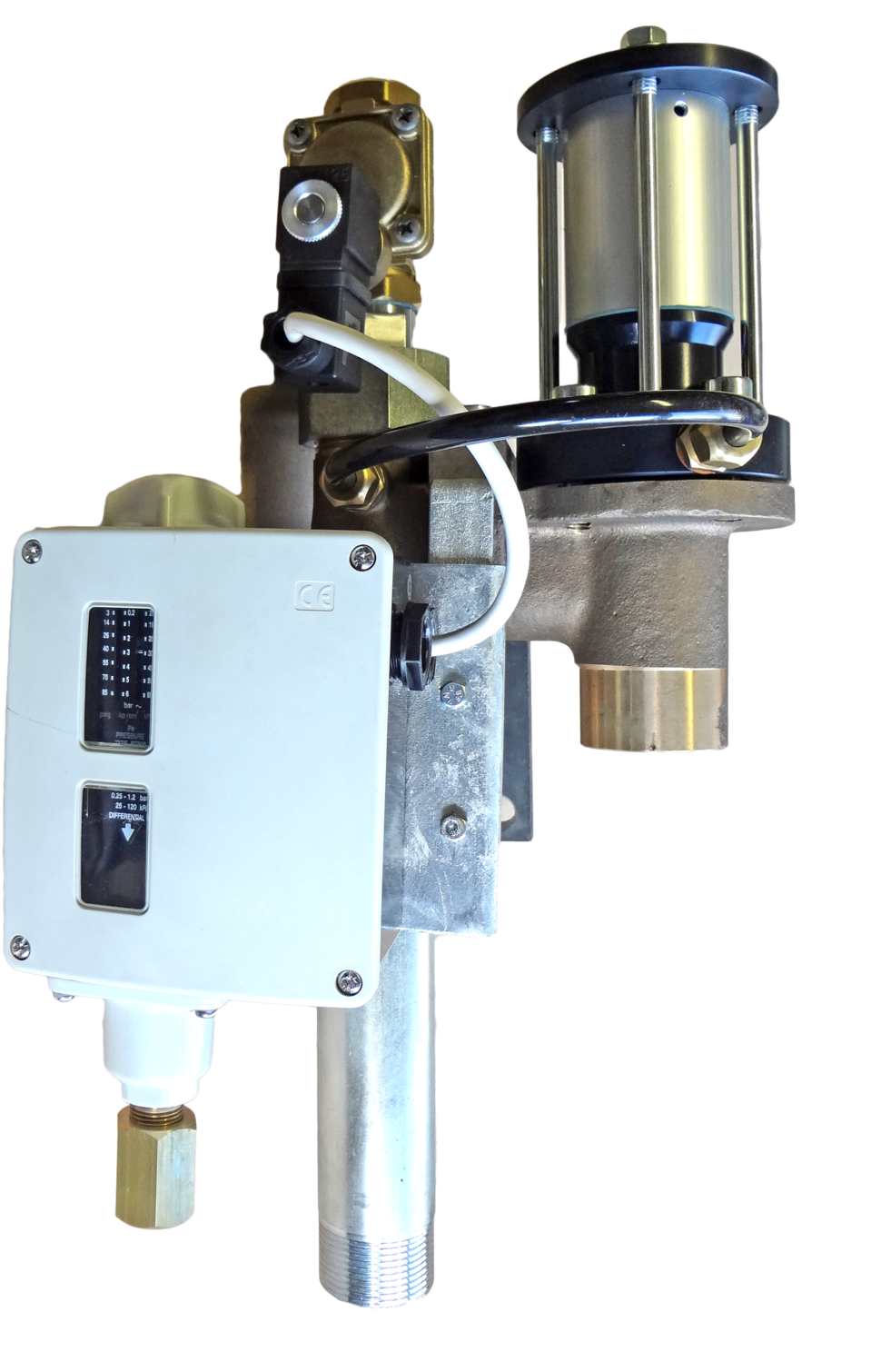

Nordan Self-priming SUEN
Nordan marine's Self- priming SUEN can be in combination with centrifugal pump. It can be applied to Thune Eureka Pump, Hamworthy and Svanehøj Pump.
Self-priming ejection unit type SUEN is used for automatic preliminary air evacuation from pump suction piping during centrifugal pump starting. For this purpose, the unit contains an air ejector. SUEN can be used for aggressive mediums and sea water since its flowing parts and nozzle is made out of polyamide.

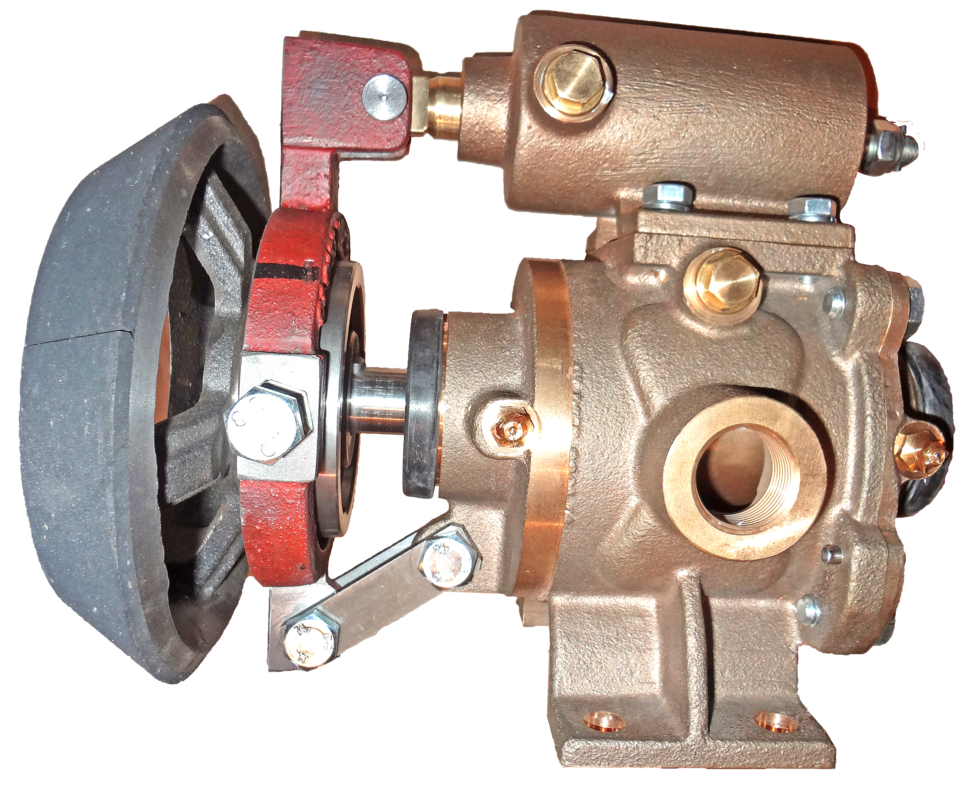

Nordan Vacuum VK 20 Pump
Nordan marine's Vacuum Pump VK20 can be in combination with centrifugal pump which from Thune Eureka pump, Hamworthy and Svanehøj Pump.
Vacuum pump VK20 is auxiliary blade pump intended for priming of suction pipeline and main centrifugal pump with working medium. Pump is driven by main pump via friction disc and it is intended for automatic independent operation. When main pump becomes flooded with working medium, VK 20 automatically mechanically disconnects from its drive. In case that main pump's delivery head drops, VK 20 again reconnects mechanically to the drive.
